Dismantling Joint
- The simplicity and versatility of the fittings make them suitable for many applications including pumping stations, water treatment works, sewage treatment works, plant rooms, meter chambers, power generation equipment, gas distribution stations.
- Viking Johnson’s Dismantling Joints are particularly suitable for simplifying the installation & removal of isolation valves, control valves, check valves, non-return valves, flow metering valves, pump sets, pressure reducing valves, flanged pipe & fittings.
- Designed and manufactured to BS EN ISO 9001: 2008 and tested to the most exacting requirements of WRAS (Water Regulatory Advisory Scheme) for use with potable water.
2 Excellent Corrosion Protection

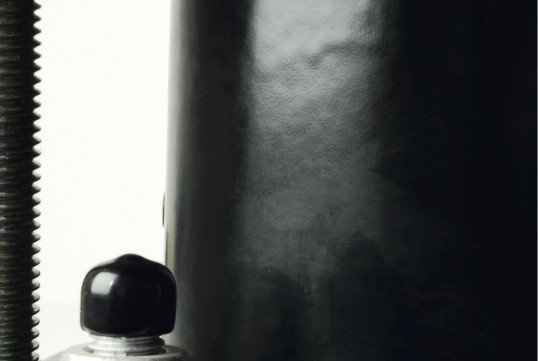

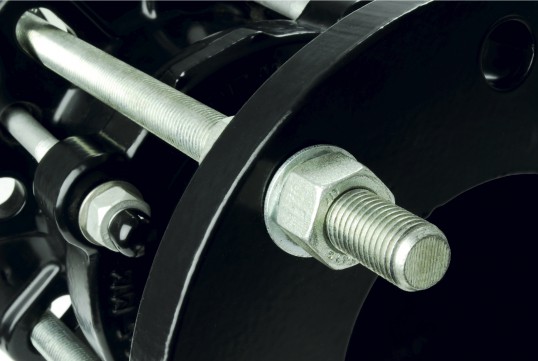

The flange adaptor and flange spigot are coated with WRAS approved Rilsan Nylon 11 providing excellent protection from transport, storage, site and corrosion damage. The tie bars are Zn3 Zinc Plated as standard with other coatings, grades and finishes available on request. The nuts and bolts are Sheraplex coated to WIS-4-52-03, offering long term protection against corrosion.
Data Sheets
- 1. Dismantling Joints - Cast & Fabricated - DN40 to DN300 (PN10, 16, 25, 40) Datasheet Download > (PDF)
- 2. Dismantling Joints DN350 to DN2400 (PN10) Datasheet Download > (PDF)
- 3. Dismantling Joints DN350 to DN2400 (PN16) Datasheet Download > (PDF)
- 4. Dismantling Joints DN350 to DN1800 (PN25) Datasheet Download > (PDF)
- 5. Dismantling Joints DN350 to DN1600 (PN40) Datasheet Download > (PDF)
- 6. Dismantling Joints 4” to 40” AWWA Datasheet Download > (PDF)
- 7. Dismantling Joints 3” to 40” (ANSI 150) Datasheet Download > (PDF)
- 8. Dismantling Joints 3” to 40” (ANSI 300) Datasheet Download > (PDF)
Fitting Instruction
-
Dismantling Joint Installation Instructions
Download
General Videos
-
Viking Johnson Multi Million Pound Investment
Crane BS&U has completed a multi-million pound investment in its Viking Johnson factory at Hitchin that will strengthen its business model to deliver enhanced customer benefits in terms of 'Best in Class' service and products. The investment has supported the creation of an entire linked value stream from the supply of raw materials through to the final manufacture of the products resulting in vastly improved lead times, product availability and plant flexibility.
View the Video
CAD Drawings
Individual Zip file contains DWG, DXF, IGS, STP files. Available for PN10, PN16 and imperial versions.
