• Design life expectancy of 50 years, established by rigorous 'Accelerated Age Testing' which subjects product to working pressure at 80°C for 1000 hours
  • Wide tolerances permit lower stock holding
  • All models accommodate angularity between pipes which allows for normal pipeline movement caused by ground settlement. Couplings and reducing couplings allowing for 6° total angular deflection (3° total on the flange adaptors)
  • A rigorous bolt torque test is completed to confirm that the bolt, end ring and adaptor bosy are capable of withstanding bolt over-tightening to 1.5 times maximum recommended torque

Pipe Materials

HEP30 Ductile Iron Steel PVC Cast Iron Asbestos Cement Stainless Steel PE GRP ABS Concrete Copper

Applications

Water Gas

1 Simple Installation

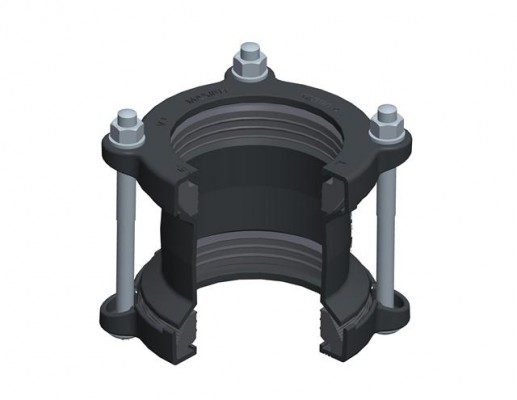

Available as standard and long sleeve versions, the MaxiFit Xtra simplifies the installation further, allowing for greater cutting tolerances and a greater pipe insertion depth - sealing beyond corrosion damaged pipe ends to create a safe and permanent repair.

2 Excellent Repair Product

MaxiStep reducing couplings are designed to provide transitions between pipes of different nominal bores simplifying installations when repairing old pipe with new.

3 Accommodates Pipe Movement

All models accommodate angularity between pipes which allows for normal pipeline movement due to ground settlement. Couplings and reducing couplings allow for 6° total angular deflection

Select your language

  • DR9380 MAXIFIT REPAIR VJ BRO THUMBNAIL 0917

    MaxiFit Repair Brochure

    Mechanical Pipe Repair Technology

    Download

Data Sheets

  • 1. MaxiFit MaxiStep Large Diameter Expanded Sleeve Stepped Coupling Datasheet Download > (PDF)
  • 2. MaxiFit MaxiStep Large Diameter Make Up Ring Stepped Couplings Datasheet Download > (PDF)

Fitting Instruction

  • maxifit couplings iom cover 2019 MaxiFit Couplings Installation Instructions
    Download

CAD Drawings

  • 57 - 74 x 63 - 85mm MaxiStep zip File
  • 57 - 74mm x 85 - 107mm MaxiStep zip File
  • 63 - 85 x 85 - 107mm MaxiStep zip File
  • 85 - 107mm x 107 - 132mm MaxiStep zip File
  • 107 - 132mm x 132 - 158mm MaxiStep zip File
  • 132 - 158mm x 158 - 184mm MaxiStep zip File
  • 158 - 184mm x 189 - 212mm MaxiStep zip File
  • 189 - 212mm x 218 - 244mm MaxiStep zip File
  • 218 - 244mm x 243 - 269mm MaxiStep zip File
  • 243 - 269mm x 266 - 295mm MaxiStep zip File
  • All MaxiStep zip File
