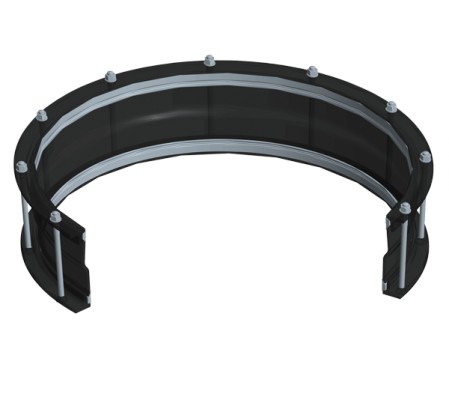

Large Diameter Stepped Coupling

  • Couplings can absorb up to 10mm expansion and contraction,flange adaptors up to 5mm which allows for movement on bridge crossings, in chambers and pump stations. Often eliminates the need for special expansion joints.
  • The standard finish for all Viking Johnson products is black Rilsan Nylon 11, which is highly resistant to impact, corrosion, abrasion and chemical attack. However, other coatings such as shopcoat, hot dip galvanising, zinc spray and epoxy coating can be supplied as required.
  • Couplings can offer up to 6° of angular deflection, flange adaptors 3° - to allow for the connection of misaligned pipes; take up ground settlement at structures; lay pipes to large radius bends.
  • Flange adaptors are often used to permit dismantling of valves in flanged pipe systems.
Pipe Materials
Steel Ductile Iron Cast Iron Stainless Steel PVC HEP30 Asbestos Cement Concrete ABS
Applications
Water Gas Industrial

1 Simple to Fit

Simple installation in any weather and trench conditions,even underwater!

2 Long Life Expectancy

Elastomeric sealing gaskets are designed to have at least a 50 year lifespan

3 Corrosion Protection

Metal components are coated with Rilsan Nylon 11 which is WRAS approved for use with potable water. The nuts and bolts are Sheraplex coated to WIS 4-52-03, offering long term protection against corrosion, impact and abrasion to ensure continued reliable protection to corrosion, impact and abrasion and therefore ensures continued reliable performance.

Select your language

  • LARGE DIAMETER VJ BRO ISSUE 6 0320 ENG THUMBNAIL

    Large Diameter Brochure

    Fittings to Suit any Pipe Specification

    Download

Data Sheets

  • 1. Large Diameter Stepped Couplings OD355.6 to 1222 Datasheet Download > (PDF)
  • 2. Large Diameter Online Enquiry / Order Form

    Complete this online form fillable PDF. Press send and save once complete to assist with a quotation for Large Diameter products.

    Download > (PDF)

Fitting Instruction

  • LargeDiameterSteppedCoupling iom Large Diameter Stepped Coupling Fitting Instructions
    Download
