Style 1081, 1082 & 1083

  • Economical slip-on design eliminates the need for mating flanges and hardware
  • Extremely lightweight and flexible
  • Large all directional movement capability with low stiffness and deflection forces
  • EPDM and multiple plies of tyre cord reinforcements standard, with a wide variety of other tube and cover elastomers available
  • 121°C continuous service standard, 204°C available
  • More than 3 arches as well as reducers and offset arrangements available
  • No gaskets required
  • Stainless steel screw clamps are not supplied with the joints

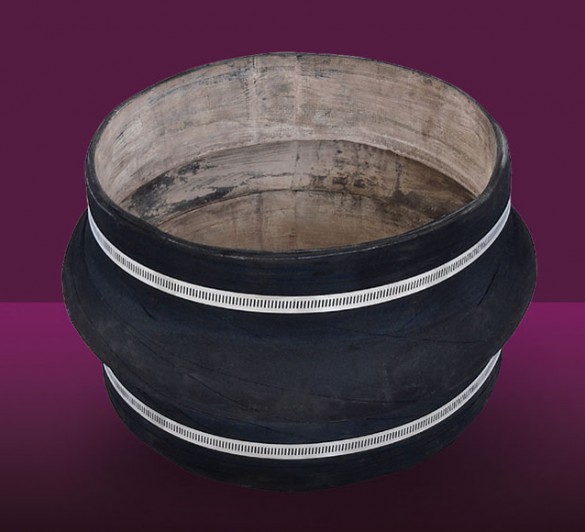

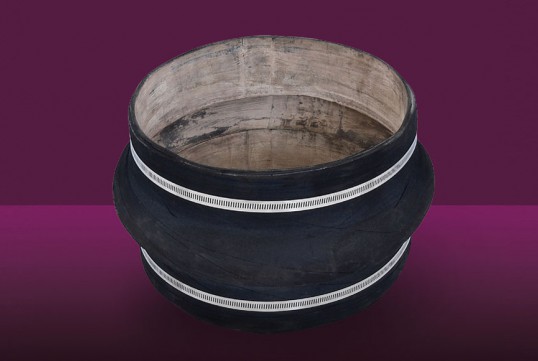

1 Style 1081

Single Arch

Style 1081

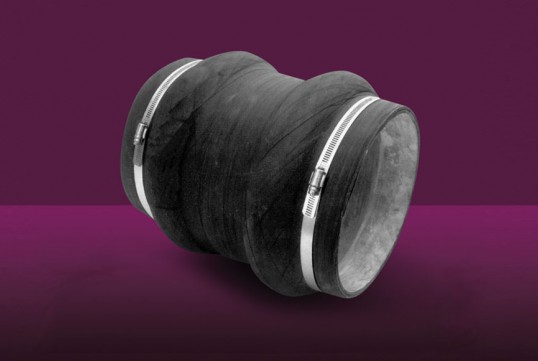

2 Style 1082

Double Arch

Style 1082

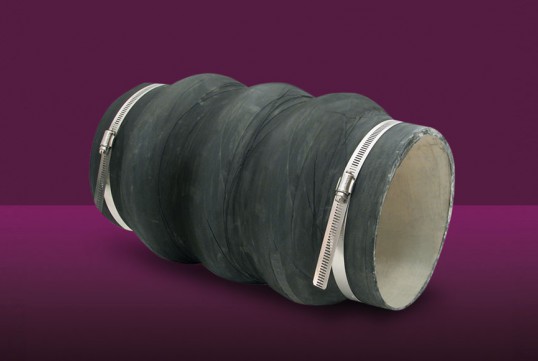

3 Style 1083

Triple Arch

Style 1083
