To Suit 1100 & 1200

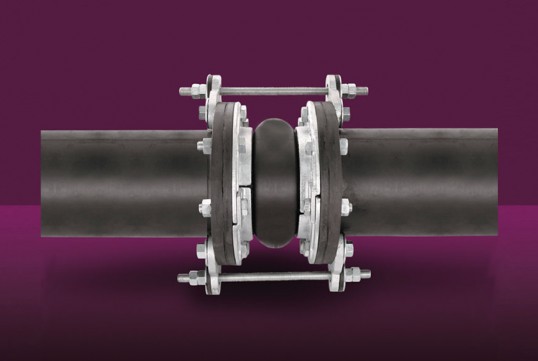

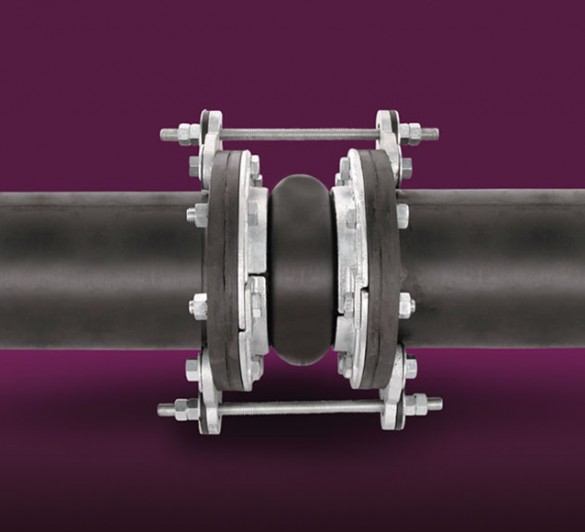

1 Control Unit

Features & Benefits

  • Protects expansion joints from over-expansion and over-compression
  • High tensile galvanised steel rods standard, stainless steel and other materials available
  • Galvanised gusset plates standard, stainless steel and other materials available
  • Rubber grommets isolate vibration and are standard on sizes 25-500 mm DN
  • Internal nuts or compression sleeves available and prevent over-compression
  • Spherical washers available and prevent binding while minimising lateral forces
  • Double nuts are used to lock limit points and allow for field adjustment
  • Standard drillings Include ANSI/AWWA, DIN and PN
  • Universal tied/self-guiding control units available and prevent squirming on longer expansion joints
  • Hinges are available and allow for angular movement in one dimension
  • Gimbals are available and allow for angular movement in two dimensions

ControlUnit
