CAD Files

Style 1101CR & 1101ER

  • An economic and space saving way to combine a reducing pipe fitting with an expansion joint
  •  Available in concentric, eccentric or custom offset arrangements
  • Versatile hand-built construction
  • Standard or custom face-to-face dimensions
  • Excellent all directional movement capability
  • Absorbs noise, vibration and shock
  • Multiple plies of tyre cord reinforcement and a wide variety of tube and cover elastomers available
  • 121°C continuous services standard, 204°C available
  • Standard drillings include: ANSI/AWWA, DIN and PN
  • Integral flange design, no gaskets required

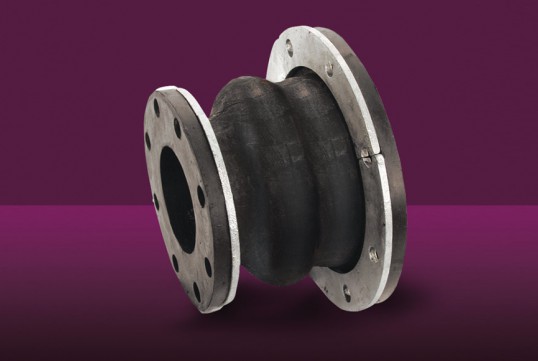

1 Style 1101CR

Concentric reducer

style 1101cr

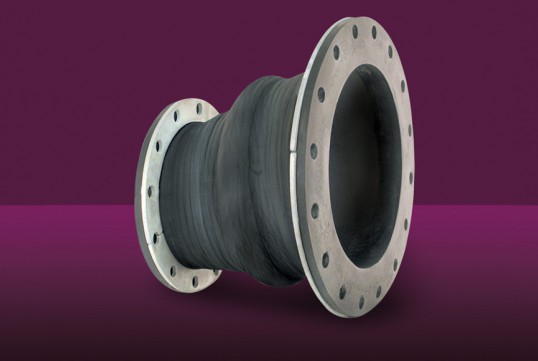

2 Style 1101ER

Eccentric reducer

style 1101er
