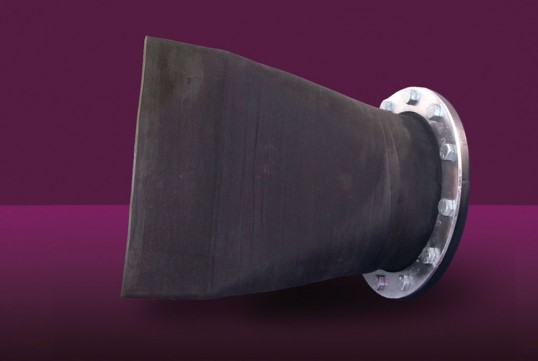

Style 4200 Flange Type

  • Eliminates backflow and seals around entrapped solids
  • 25mm to 2438mm (1" to 96") DN
  • Rugged all elastomer construction is a full variety of materials
  • Maintenance free operation with no mechanical components that can corrode or freeze
  • Lower head loss than conventional check valves
  • Will open with as little as 25mm WC. Drop tight at 30psi over 18.3m WC
  • Quiet opening, no slamming
  • Non-plugging
  • Provides corrosion and abrasion resistance
  • Versatile construction for a wide range of applications
  • Standard flange drillings include: ANSI and BS EN-DIN1092 PN16
  • Full faced internal elastometric flange ensures a complete seal while a need for gaskets
  • Retaining rings available in galvanised, 304 stainless steel and 316 stainless steel
