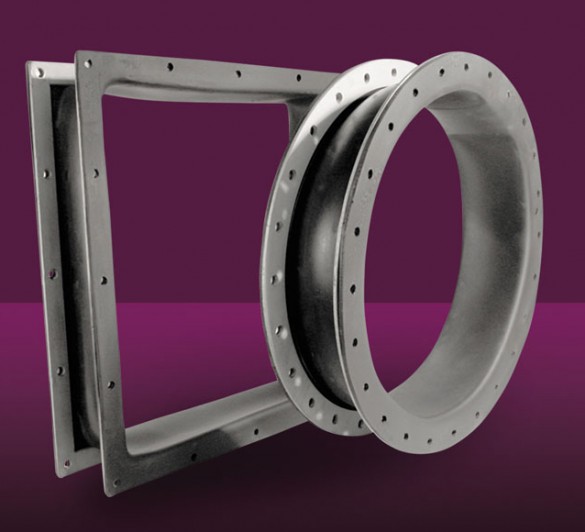

Style 1092 & 1097

  • Round and rectangular designs in all styles
  • Exceptional all directional movement capability
  • Absorbs system noise, vibration and shock
  • Compensates for minor misalignment and offset
  • Integrally flanged design
  • Low stiffness and deflection forces
  • Simple to install, lightweight and high strength
  • Provides easy access to ducting and equipment
  • Carbon steel, stainless steel, or hot dipped galvanised backing rings available for easy bolting to mating flanges
  • Up to 204°C and ±35 KPa continuous service
  • Standard face-to-face dimensions of style 1092 include 80, 100, 150, 200 and 300mm with molded flanges
  • Custom face-to-face dimensions with style 1097
  • No gaskets required
  • Wide variety of tube and cover elastomers available
  • Excellent chemical and abrasion resistance

1 Style 1092 & 1097

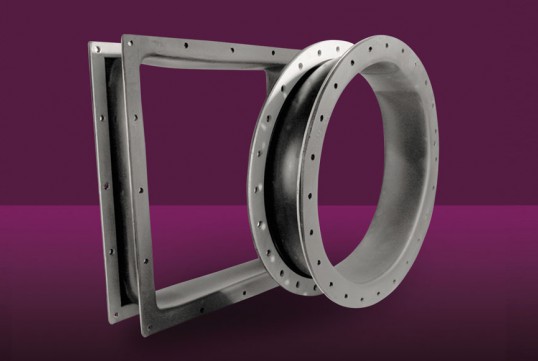

Style 1092
