Style 1080, 1086, 1087 & 1091

  • Versatile hand-built construction allows general rubber to work with the system requirements to develop an optimal and cost-effective solution
  • 121°C continuous service standard, 204°C available
  • The no arch style 1080 typically incorporates wire reinforcement for higher pressure and vacuum ratings, while the no arch style 1086 has no wire and is designed for ducting applications operating within ±35 KPa
  • The single or multiple arch style 1087 is also designed for ducting applications operating within ±35 KPa as well as requiring significant all directional movement and/or low deflection forces
  • The unique beaded ends on the fully molded style 1091 prevent the sleeve from being pulled out from under the clamps, making this design ideal for vibrating bin activators as well as other Industrial OEM Equipment
  • Economical slip-on design eliminates the need for mating flanges and hardware
  • Dimensions on application

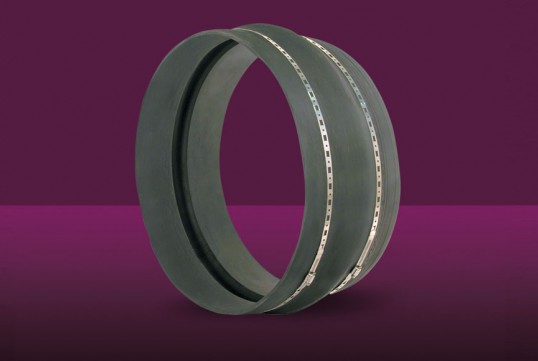

1 Style 1081LW

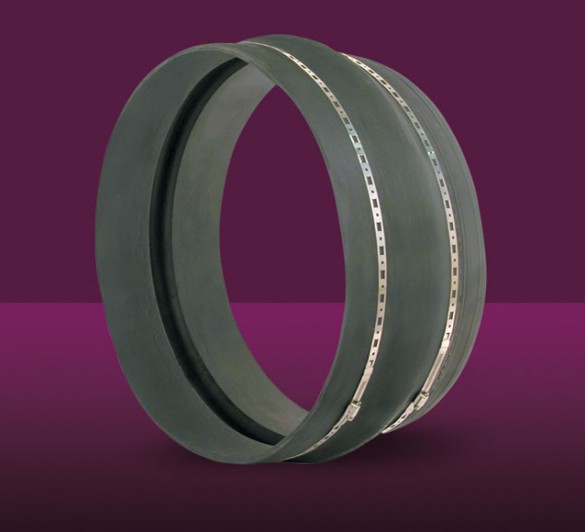

Style 1081LW
