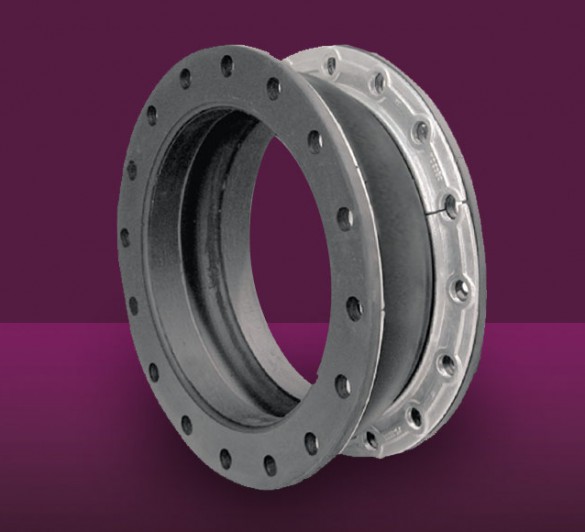

1 Style 1101HP (High Pressure)

• Versatile hand-built construction
• Standard or custom face-to-face dimensions
• Wide flowing arch design
• Exceptional all directional movement capability
• Virtually eliminates sediment build-up
• Higher pressure rating than standard style 1101 expansion joints
• Excellent chemical and abrasion resistance
• Full vacuum rating (-1 Bar g) in all style 1101 sizes
• 121°C continuous services standard, 204°C available
• Filled arch design available
• Standard drillings include: ANSI/AWWA, DIN and PN
• Hot dip galvanised retaining rings standard
• Wide variety of tube and cover elastomers available, including pure gum rubber, EPDM, neoprene, butyl, nitrile, Viton®, food grade and more
• Absorbs noise, vibration and shock
• Compensates for minor misalignment and offset
• Low stiffness and deflection forces
• Integral flanged design, no gaskets required
• Simple to install, lightweight and high strength
• Provides easy access to piping and equipment

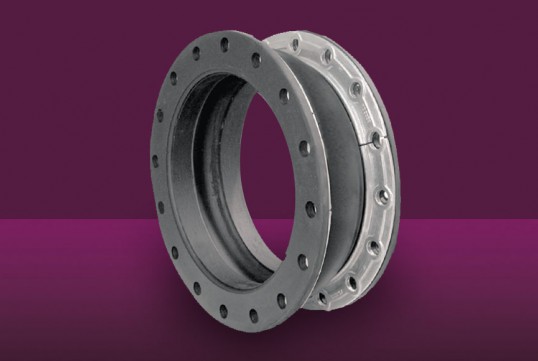

Style 1101HP
