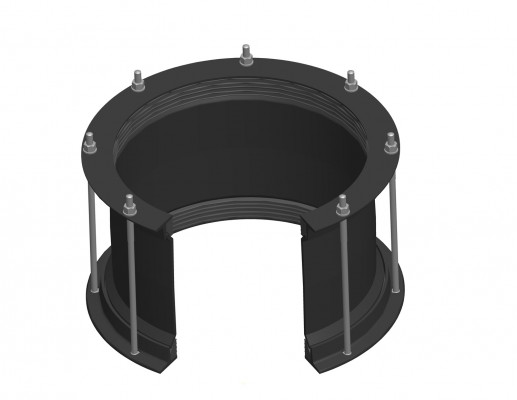

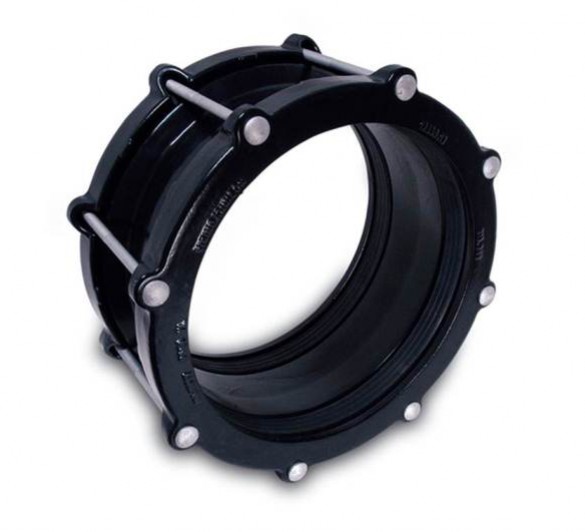

MaxiFit Large Diameter Coupling

  • Design life expectancy of 50 years, established by rigorous 'Accelerated Age Testing' which subjects product to working pressure at 80°C for 1000 hours
  • Wide tolerances permit lower stock holding
  • Sizes from DN350 to DN 600
  • All models accommodate angularity between pipes which allows for normal pipeline movement caused by ground settlement. Couplings and reducing couplings allowing for 6° total angular deflection (3° total on the flange adaptors)
  • A rigorous bolt torque test is completed to confirm that the bolt, end ring and adaptor bosy are capable of withstanding bolt over-tightening to 1.5 times maximum recommended torque

Pipe Materials

Ductile Iron

Applications

Water

1 Simple to Fit

All Large Diameter MaxiFit, MaxiStep & MaxiDaptor products (DN350- DN600) have a long sleeve length as standard; this is a major benefit to the installer, allowing for greater cutting tolerances and a greater pipe insertion depth - sealing beyond corrosion damaged pipe ends to create a safe and permanent repair.
