• Design life expectancy of 50 years, established by rigorous 'Accelerated Age Testing' which subjects product to working pressure at 80°C for 1000 hours
  • Wide tolerances permit lower stock holding
  • All models accommodate angularity between pipes which allows for normal pipeline movement caused by ground settlement. Couplings and reducing couplings allowing for 6° total angular deflection (3° total on the flange adaptors)
  • A rigorous bolt torque test is completed to confirm that the bolt, end ring and adaptor bosy are capable of withstanding bolt over-tightening to 1.5 times maximum recommended torque

PE*Due to the flexible nature of the plastic pipes, a close fit Stainless Steel internal support liner is required when PE Pipe or thin walled PVC is used to make a repair to prevent excessive pipe deformation which can occur when a coupling or flange adaptor is installed.

Pipe Materials

Ductile Iron Steel PVC Cast Iron Asbestos Cement Stainless Steel PE HEP30 GRP ABS Concrete Copper

Applications

Water Gas

1 Ultimate Flexibility

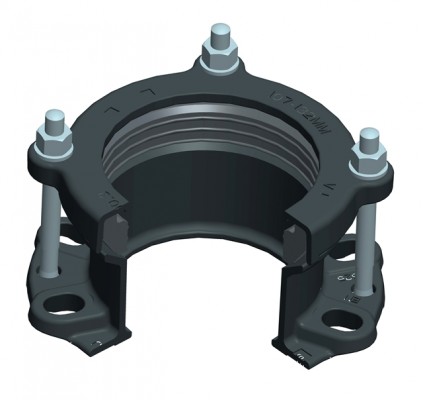

All cast flanges have multi drilling including: BS EN 1092-1, ISO 7005 1:1992, (PN10/16), BS10:1962 (Table ADE), ANSI/AWWA.

2 Exceptional Sealing Capabilities

Flanges have an extended sealing face.

3 Accommodates Pipe Movement

All models accommodate angularity between pipes which allows for normal pipeline movement due to ground settlement. Flange adaptors have a total angular deflection of 3°.

Select your language

  • DR9380 MAXIFIT REPAIR VJ BRO THUMBNAIL 0917

    MaxiFit Repair Brochure

    Mechanical Pipe Repair Technology

    Download

  • DR9380 MAXIFIT VJ BRO THUMBNAIL 0917

    MaxiFit Wide Tolerance Brochure

    Mechanical Pipe Fitting Technology

    Download

Data Sheets

Fitting Instruction

  • MaxiFit MaxiDaptor FA VJ IOM 0817 DR9175 MaxiFit MaxiDaptor Installation Instructions
    Download

CAD Drawings

ZIP files contain DWG, IGS, IPT and STP file types
