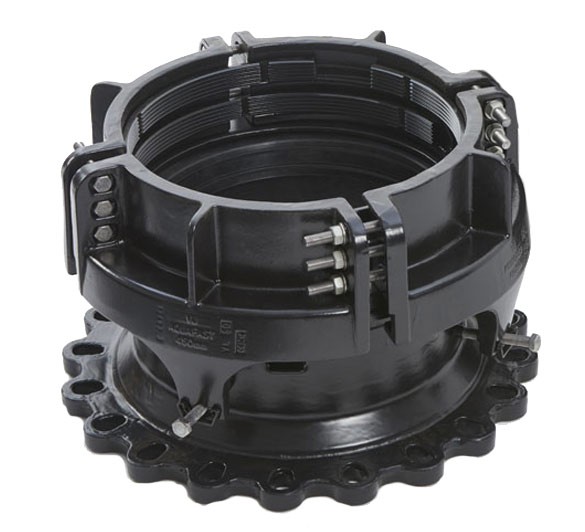

AquaFast Large Diameter Flange Adaptor

  • Adaptor can be used for repair - no internal restriction ideal for Sewage applications.
  • Fittings comes fully assembled.
  • Suitable for connecting pipes in wet/submerged conditions and above ground applications.
  • No requirement for a support liner, torque wrench or any other specialist equipment on site.
  • Easy to centralise on the pipe.
  • Reduced stockholding - One product can connect one nominal pipe size with common SDRs (11 & 17/17.6).
  • 50 years design life expectancy.
  • Reusability - No spares requires for multiple installations.
  • Saves time and effort as Contractor only has to identify PE pipe nominal size to select correct fitting.
  • Minimal number of bolts to tighten.

Pipe Materials

PE

Applications

Water

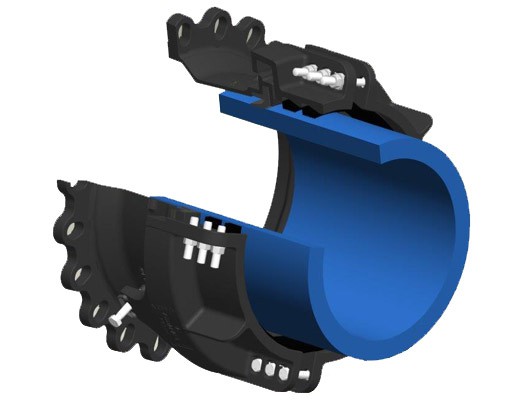

1 Innovative Gripping

An enhanced gripping mechanism offers Type 2 end load restraint, resisting pipe pull out

aquafast large dia feature 1

2 Corrosion Protection

All cast components are fully coated in Black Rilsan Nylon 11 which has excellent resistance to impact, abrasion, weathering and chemicals as well as good thermal stability and flexibility to accommodate for rough site handling.

aquafast large dia feature 2

3 Positive Stop

Correct installation confirmed through visual indication with metal to metal contact between the clamp bands.

aquafast large dia feature 3

4 Centralisation Feature

Centralisation bolts are available around the product allowing accurate fitment during installation.

aquafast large dia feature 4

Select your language

  • aquafast coupling flange enhanced cover

    AquaFast Couplings & Flange Adaptors Brochure

    For Polyethylene & PVC Connections 63mm - 450mm Diameter

    Download

Fitting Instruction

General Videos

CAD Drawings

ZIP files contain DWG, IGS, IPT and STP file types

  • 355x300mmmm AquaFast Large Diameter Flange Adaptor zip File
  • 355x350mmmm AquaFast Large Diameter Flange Adaptor zip File
  • 400x350mmmm AquaFast Large Diameter Flange Adaptor zip File
  • 400x400mmmm AquaFast Large Diameter Flange Adaptor zip File
  • 450x400mmmm AquaFast Large Diameter Flange Adaptor zip File
  • 450x450mmmm AquaFast Large Diameter Flange Adaptor zip File
  • 450x500mmmm AquaFast Large Diameter Flange Adaptor zip File
