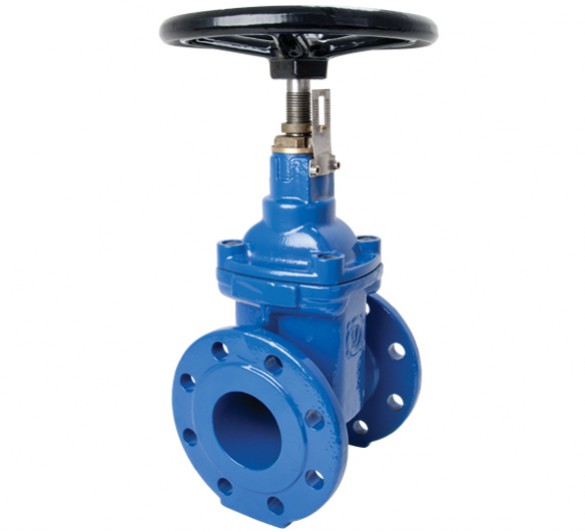

Resilient Seated Gate Valve - Series 34

  • Suitable for use with water, neutral liquids and sewage
  • Clockwise closing as standard or anti-clockwise closing where specified
  • Handwheel option
  • Valve Position Indicator option
  • Sea water version
  • ISO flanged version for gearbox or actuator mounting
  • Gearbox option
  • Powered Actuator option
  • WRAS approved materials

Applications

Water Industrial

1 Body & Bonnet

Manufactured from ductile iron to EN-GJS-450 offering improved durability. Flanges are available drilled to PN10 or PN16

2 Operation

Handwheel – Where valves are installed above ground Gearbox & Handwheel – Where high system pressures increase operating forces above the level suitable for direct operation. Actuation – Electric, hydraulic or pneumatic to suit remote operation Cap Top as standard – Dimensions in accordance with BS1074 design standards for operation using a standard waterworks tee-key

3 Applications

  • Potable water distribution mains
  • Effluent systems
  • Irrigation
  • Fire protection
  • Pumping systems
  • Industrial water systems
  • Cooling water systems
  • Air conditioning systems

4 Coating

WRAS listed fusion bonded epoxy coating, minimum thickness 250 micron ~~Corrosion resistant construction

5 Fasteners

A2 stainless steel sealed body / bonnet bolts for enhanced corrosion resistance

6 Wedge

Ductile Iron Wedge totally encapsulated with EPDM WRAS elastomer (Nitrile option available)

7 Stem

Stem sealing o-rings replaceable under pressure ~~Stainless steel non rising stem - for improved corrosion resistance

8 Ancillaries

  • Handwheels
  • Gearboxes c/w handwheels
  • Powered actuators – Electric, hydraulic, pneumatic
  • Valve position indicators
  • Extension spindles
  • Chain wheels
